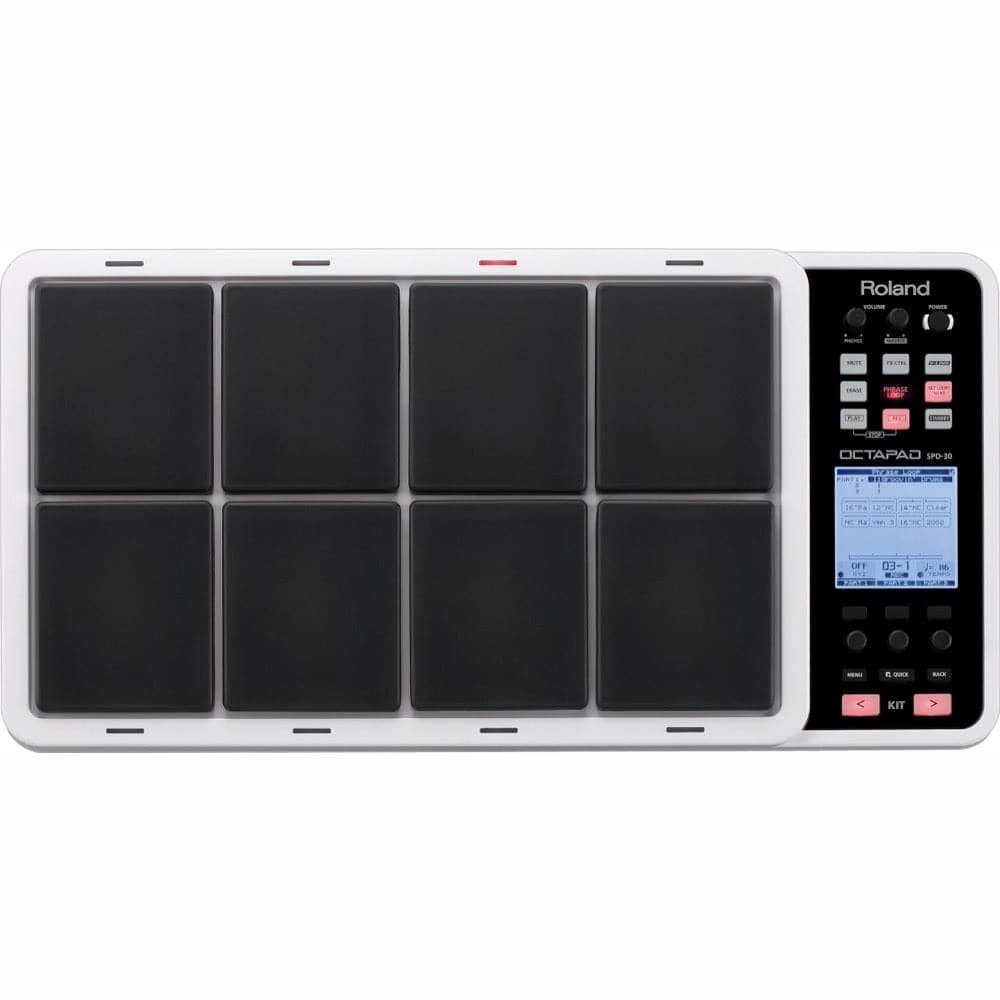

Roland Octapad Digital Percussion Pad

OCTAPAD SPD-30

Digital Percussion Pad

THE REINVENTION OF THE OCTAPAD

The new Version 2 system upgrade expands the SPD-30’s onboard kit and phrase libraries, and add powerful new features and functions. Roland’s original Octapad profoundly changed the landscape of electronic percussion. The size of a briefcase, the Octapad offered drummers and percussionists the equivalent of an entire electronic rig in one self-contained unit — a new level of convenience and expression. Today, decades later, an exciting new chapter in Octapad history begins. The SPD-30 blends the world’s most essential sounds with the latest triggering technology in a road-tough package that’s ready for the most demanding performers.

• The latest pad-sensing technology developed for V-Drums provides even and accurate pad triggering with excellent isolation between pads
• Four dual-trigger inputs, plus hi-hat controller for adding pads to create a mini kit, or for connecting triggers from acoustic drums
• Phrase Loop function inspires your creativity; record your playing in real time and overdub up to three layers
• USB connectivity for MIDI and memory storage
• Large backlit LCD and pad indicator lights for easy operation in low-light conditions
• Rugged, road-worthy design

Pads

Built-in Pads: 8
* Four external trigger inputs are provided, allowing you to connect Pads.

Instruments: 670

Kits: 50

Kit Chain

8 chains (20 steps per chain)

Instrument Parameters

Tuning
Muffling
Soft Attack
Tone Color
Pitch Sweep
Volume
Pan
Reverse

Effect Types

Ambience (7 Types), Equalizer, Limiter, Multi Effect (30 Types)

Phrase Loop

Phrases: 50
Parts: 3
Tempo: 40 to 260
Resolution: 480 ticks per quarter note
Recording Method: Real-time
Maximum Note Storage: approx. 10,000 Notes

Display

160 x 160 dots Graphic Type LCD (Backlit LCD)
Pad Status Illumination x 8 (LED)

Connectors

PHONES Jack (Stereo 1/4 inch phone type)
OUTPUT Jacks (L (MONO), R) (1/4 inch phone type)
MIX IN Jack (Stereo 1/4 inch phone type)
EXTERNAL TRIGGER INPUT Jacks x 4
HH CTRL Jack, FOOT SW Jack (1/4 inch TRS phone type)
MIDI Connectors (IN, OUT)
USB MEMORY Connector (for USB Memory)
USB MIDI Connector (for USB MIDI)

Output Impedance

1.0 k ohms

Power Supply

AC Adaptor (DC 9 V)

Current Draw

600 mA

Accessories

Owner's Manual
AC Adaptor (PSB-1U)
Screws (M5 x 12 mm) x 4

Options

Pads (PD series, PDX series, BT-1)
Cymbals (CY series)
Kick Triggers (KD series)
Hi-Hats (VH-11)
Hi-Hat Control Pedal (FD series)
Pad Stand (PDS-10)
All-Purpose Clamp (APC-33)
Acoustic Drum Trigger (RT-30H, RT-30HR, RT-30K)
Pedal Switch (DP-2)
Foot Switch (FS-5U, FS-6)
Personal Drum Monitor: PM-10, PM-30
V-Drums Accessory Package: DAP-3
V-Drums Mat: TDM-10
USB memory
* Use USB memory sold by Roland. We cannot guarantee operation if other
products are used.

SIZE AND WEIGHT

Width

541 mm
21-5/16 inches

Depth

272 mm
10-3/4 inches

Height

88 mm
3-1/2 inches

Weight

3.8 kg
8 lbs. 7 oz.

Weight exclude AC Adaptor.

In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
