Roland Octapad Digital Percussion Pad Black

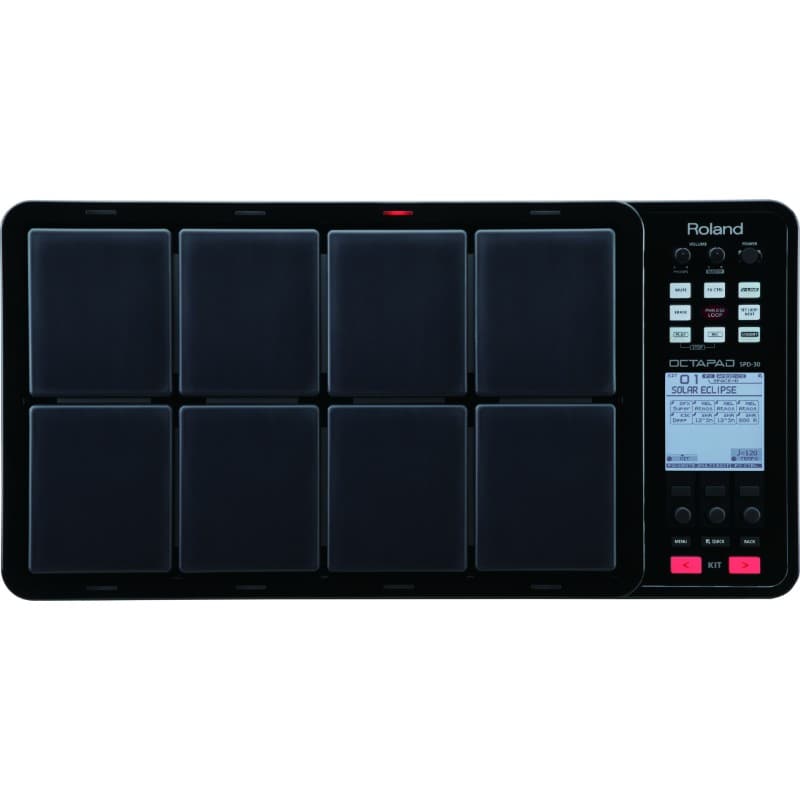

Roland OCTAPAD SPD-30Digital Percussion Pad

THE REINVENTION OF THE OCTAPAD!

The new Version 2 system upgrade expands the SPD-30’s onboard kit and phrase libraries, and add powerful new features and functions. Roland’s original Octapad profoundly changed the landscape of electronic percussion. The size of a briefcase, the Octapad offered drummers and percussionists the equivalent of an entire electronic rig in one self-contained unit — a new level of convenience and expression. Today, decades later, an exciting new chapter in Octapad history begins. The SPD-30 blends the world’s most essential sounds with the latest triggering technology in a road-tough package that’s ready for the most demanding performers.

• The latest pad-sensing technology developed for V-Drums provides even and accurate pad triggering with excellent isolation between pads
• Four dual-trigger inputs, plus hi-hat controller for adding pads to create a mini kit, or for connecting triggers from acoustic drums
• Phrase Loop function inspires your creativity; record your playing in real time and overdub up to three layers
• USB connectivity for MIDI and memory storage
• Large backlit LCD and pad indicator lights for easy operation in low-light conditions
• Rugged, road-worthy design

Pads: Built-in Pads: 8

* Four external trigger inputs are provided, allowing you to connect Pads.

Instruments: 670

Kits: 50

Kit Chain: 8 chains (20 steps per chain)

Instrument Parameters:

• Tuning
• Muffling
• Soft Attack
• Tone Color
• Pitch Sweep
• Volume
• Pan
• Reverse

Effect Types:

• Ambience (7 Types), Equalizer, Limiter, Multi Effect (30 Types)

Phrase Loop:

• Phrases: 50
• Parts: 3
• Tempo: 40 to 260
• Resolution: 480 ticks per quarter note
• Recording Method: Real-time
• Maximum Note Storage: approx. 10,000 Notes

Display:

• 160 x 160 dots Graphic Type LCD (Backlit LCD)
• Pad Status Illumination x 8 (LED)

Connectors:

• PHONES Jack (Stereo 1/4 inch phone type)
• OUTPUT Jacks (L (MONO), R) (1/4 inch phone type)
• MIX IN Jack (Stereo 1/4 inch phone type)
• EXTERNAL TRIGGER INPUT Jacks x 4
• HH CTRL Jack, FOOT SW Jack (1/4 inch TRS phone type)
• MIDI Connectors (IN, OUT)
• USB MEMORY Connector (for USB Memory)
• USB MIDI Connector (for USB MIDI)

Output Impedance:

• 1.0 k ohms

Power Supply:

• AC Adaptor (DC 9 V)

Current Draw:

• 600 mA

Accessories:

• Owner's Manual
• AC Adaptor (PSB-1U)
• Screws (M5 x 12 mm) x 4

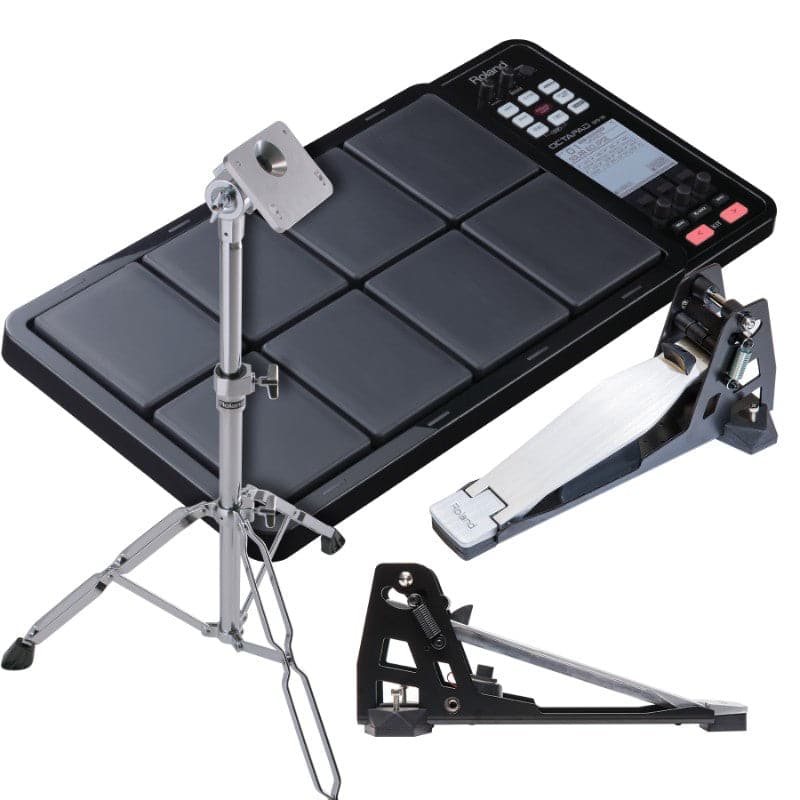

Options:

• Pads (PD series, PDX series, BT-1)
• Cymbals (CY series)
• Kick Triggers (KD series)
• Hi-Hats (VH-11)
• Hi-Hat Control Pedal (FD series)
• Pad Stand (PDS-10)
• All-Purpose Clamp (APC-33)
• Acoustic Drum Trigger (RT-30H, RT-30HR, RT-30K)
• Pedal Switch (DP-2)
• Foot Switch (FS-5U, FS-6)
• Personal Drum Monitor: PM-10, PM-30
• V-Drums Accessory Package: DAP-3
• V-Drums Mat: TDM-10
• USB memory

* Use USB memory sold by Roland. We cannot guarantee operation if other
products are used.

SIZE AND WEIGHT:

Width

• 541 mm
• 21-5/16 inches

Depth

• 272 mm
• 10-3/4 inches

Height

• 88 mm
• 3-1/2 inches

Weight

• 3.8 kg
• 8 lbs. 7 oz.

Weight exclude AC Adaptor.

In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
