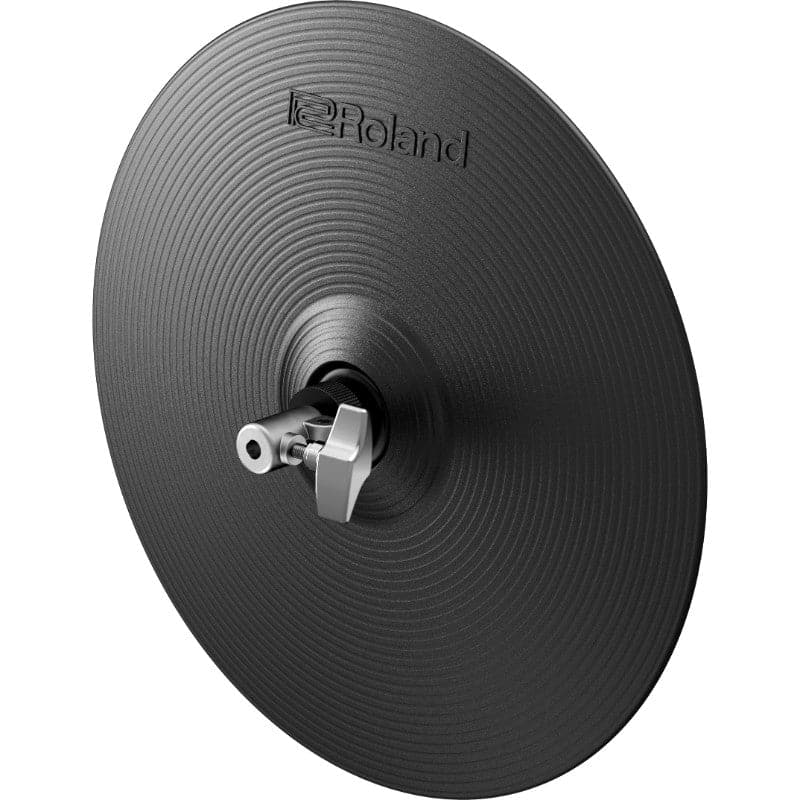

Roland VH-10 V-Hi Hat Pad 12"

VH-10 V-Hi-Hat

IDEAL FOR PERFECTING HI-HAT TECHNIQUES

The VH-10 V-Hi-Hat uses a single-cymbal floating design that can be mounted and played on a traditional acoustic hi-hat stand. It provides the same playing feel as an acoustic hi-hat with natural rebound feel and swinging motion of the hi-hat cymbal. The depth at which you advance the pedal of the hi-hat stand smoothly varies the tonal character from open to closed, and you can also use hi-hat techniques such as half-closed playing and foot-splash. The VH-10 allows you to express the tonal change that occurs when you strike the hi-hat in the closed state before immediately opening it. You can even differentiate between strikes on the bow and edge of the cymbal, too.

• Replicates the natural swinging motion of an authentic hi-hat cymbal
• Light-weight cymbal, perfect for foot splash techniques and quick pedal control
• Differentiate between strikes on the bow and edge
• Striking surface uses rubber for silencing
• Can be mounted on a traditional acoustic hi-hat stand

SPECIFICATIONS

Size

10 inches

Triggers

2 (Bow, Edge)

Connectors

TRIGGER OUTPUT jack
CONTROL OUTPUT jack

Acceptable rod diameters

6.0–7.0 mm (1/4–5/16 inches) (Rod bushes: Max. 11.7 mm (1/2 inches))

Accessories

Insulating plate
Connection cable x 2
Drum key
Tie with lock
Owner's Manual
Leaflet “USING THE UNIT SAFELY”

Options (sold separately)

Noise eater (NE-10, NE-1)
Hi-hat stand

SIZE AND WEIGHT (HI-HAT)

Width

314 mm
12-3/8 inches

Depth

314 mm
12-3/8 inches

Height

103 mm
4-1/16 inches

Weight

1.2 kg
2 lbs 11 oz

SIZE AND WEIGHT (MOTION SENSOR UNIT)

Width

77 mm
3-1/16 inches

Depth

74 mm
2-15/16 inches

Height

71 mm
2-13/16 inches

Weight

0.2kg
8 oz
